JLG 10MSP Stock Picker

HLS is a specialist provider of access platforms and other solutions for safe and compliant working at height – JLG's 10MSP stock picker is available both new and used for sale, short-term hire and long-term lease.

View details >Request demo >

The JLG 10MSP Drivable Stock Picker

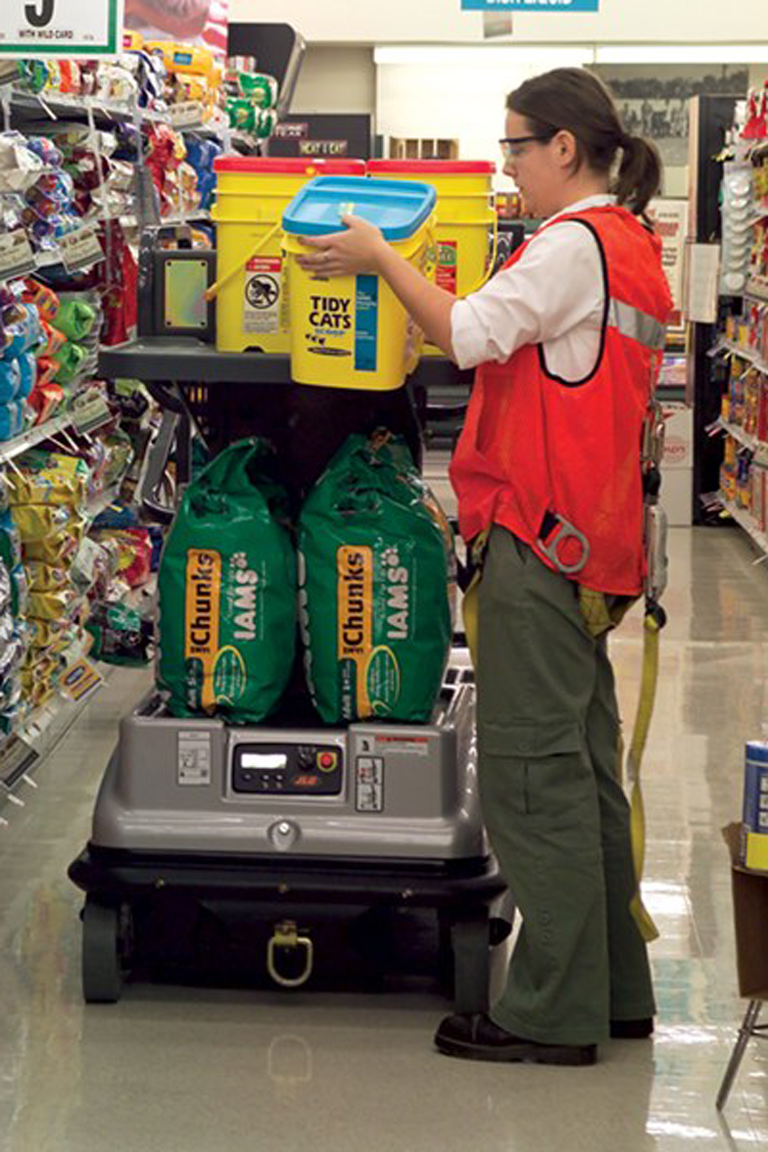

JLG 10MSP stock picking in a pet superstore

Safe, comfortable and cost effective, the 10MSP replaces the need for warehouse steps  >  Driveable for efficient stock picking  >  Ajustable cargo shelf

  • 5.05m Working height
  • Advanced Point and Go® drive and steer joystick provides precision one-hand control
  • Zero turning radius for excellent manoeuvrability
  • Large adjustable-height material tray provides 28% more cargo space than comparable units
  • Heavy-duty electric drive system for high-cycle operations
  • Dual inward-swing “saloon style” gates for ease of entry and exit

Ideal for stock picking and working at height in warehouses, shops, archives, factory stores, libraries, universities, museums and other public buildings

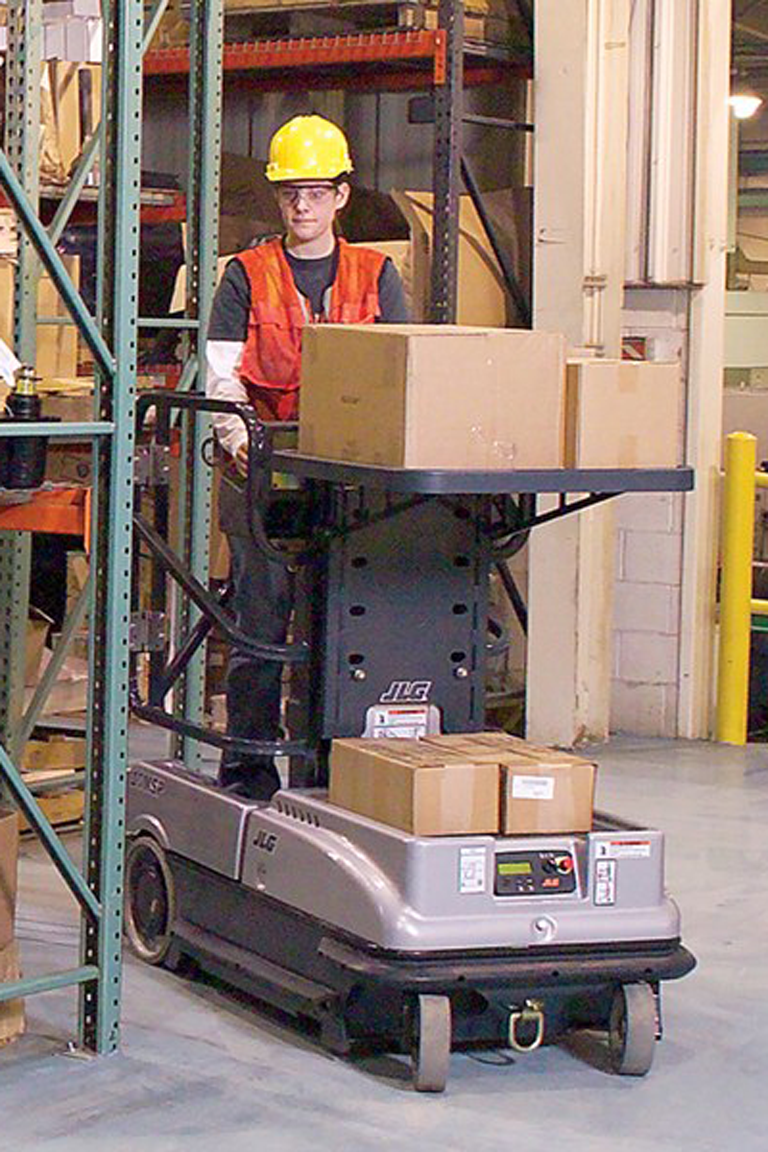

JLG 10MSP stockpicking in a warehouse

JLG 10MSP - Quick specs:

  • Up to 5.05m working height
  • Lift capacity 160KG
  • Cargo shelf capacity 115KG
  • Height adjustable cargo shelf minimises manual handling
  • Platform entry height 0.35m
  • Higly manoeuvrable - ZERO inside turning radius
  • 0.83m wide x 1.56m long x 1.45m high (when stowed)
  • Maximum ground pressure on front castors 11.7KG per CM2
  • Maximum ground pressure on rear wheels 6.7KG per CM2
  • Weight 555KG
  • Mains-rechargeable battery pack powers elevation and drive functions, 110/220V self-seeking charger included as standard
  • Direct electric drive improves duty cycle (works for longer)

  Download Specification Guide >

10MSP not quite right? Need a lift finding the right product?
